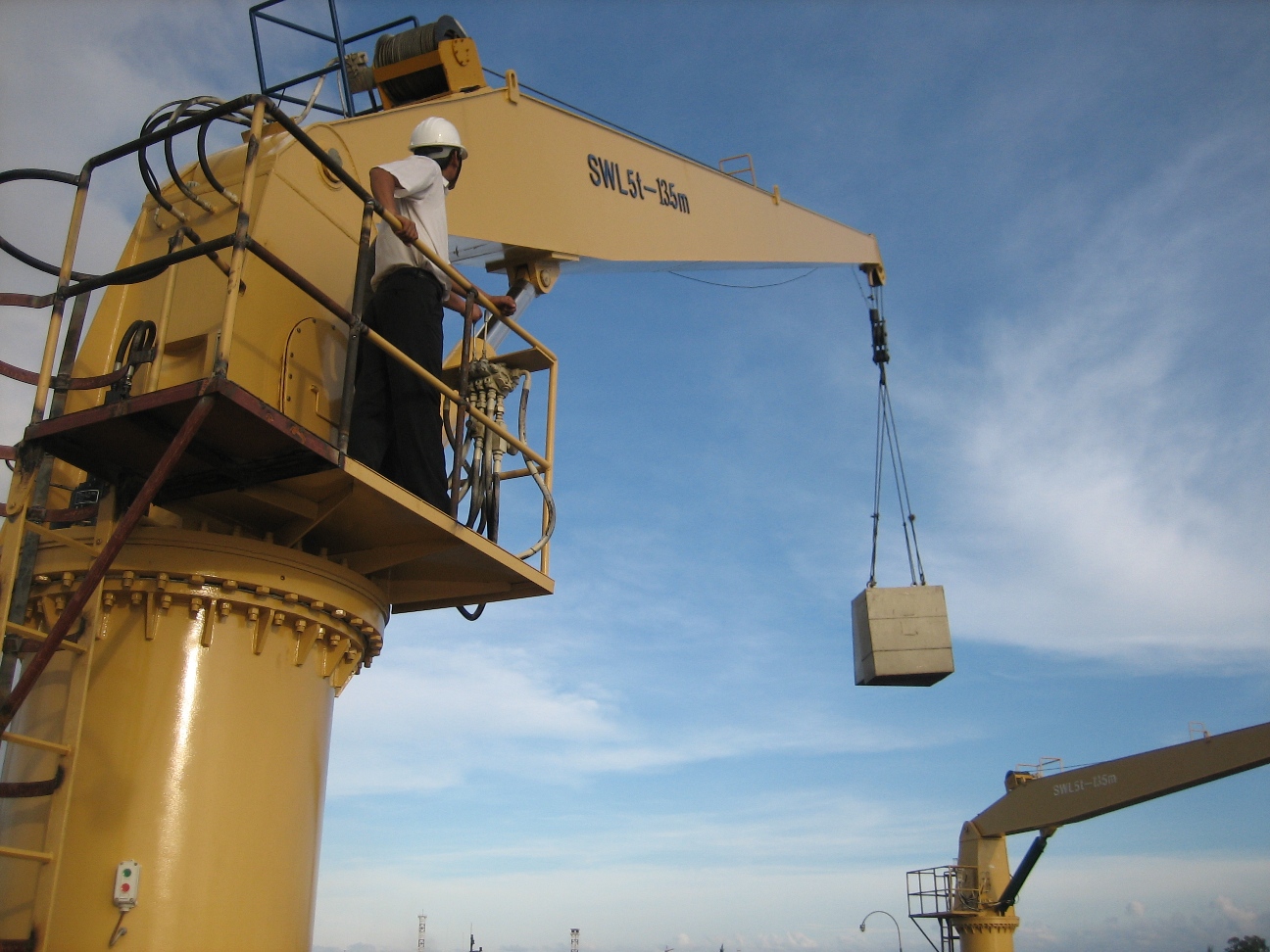

直臂吊機

產品詳情:

1.描述Description：

這種起重機特別適用于普通貨物、集裝箱船上的快速處理型類。它的低重量意味著它可用于承載能力低的地區。

This kind of crane is especially suitable for the rapid processing type of ordinary cargo and container ships. Its low weight means that it can be used in areas with low carrying capacity.

聯系我們

產品系列Product Range

起重機類型 Crane Type	工作半徑Working Radius(m)	SWL(ton)	起重力矩 Lifting Moment(kNm)	總力矩 Total Moment(kNm)	底座直徑 Pedestal Diamete(mm)	凈重 Dead Weight(ton)
DK220	27.5	20	2200	4000	1800	15
DK300	30	25	3000	5000	2065	17.5
DK400	32	30	4000	6300	2050	20
DK500	35	35	5000	8000	2240	25
DK800	40	50	8000	11500	2271	45
DK1000	43	60	10000	14400	2536	60
DK1200	45	80	12000	18000	2550	85
DK1600	50	100	16000	34000	3166	120
DK2000	50	125	20000	44000	3987	160
DK2500	50	150	25000	50000	4000	180
DK3000	55	200	30000	60000	4500	220

說明：以上參數為已有業績案例中的成熟技術參數僅作參考，可根據用戶需要進行非標設計、制造。該機有各種派生型號供用戶選用。

Note: The above parameters for the performance of the existing cases of mature technical parameters are for reference only. We can design and manufacture products according to user’s requirements. There are various derivative models of said crane available for customers to choose.
